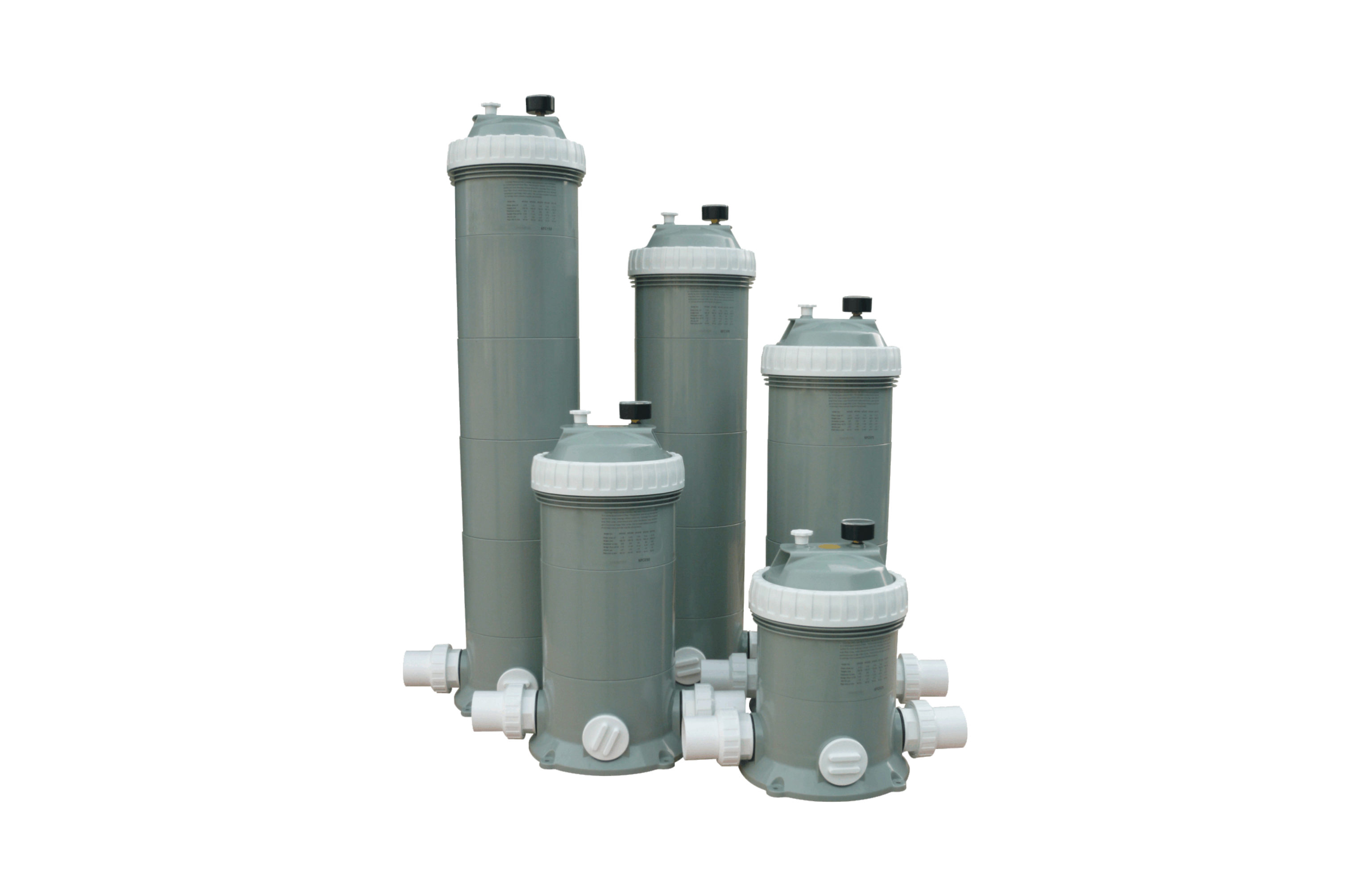

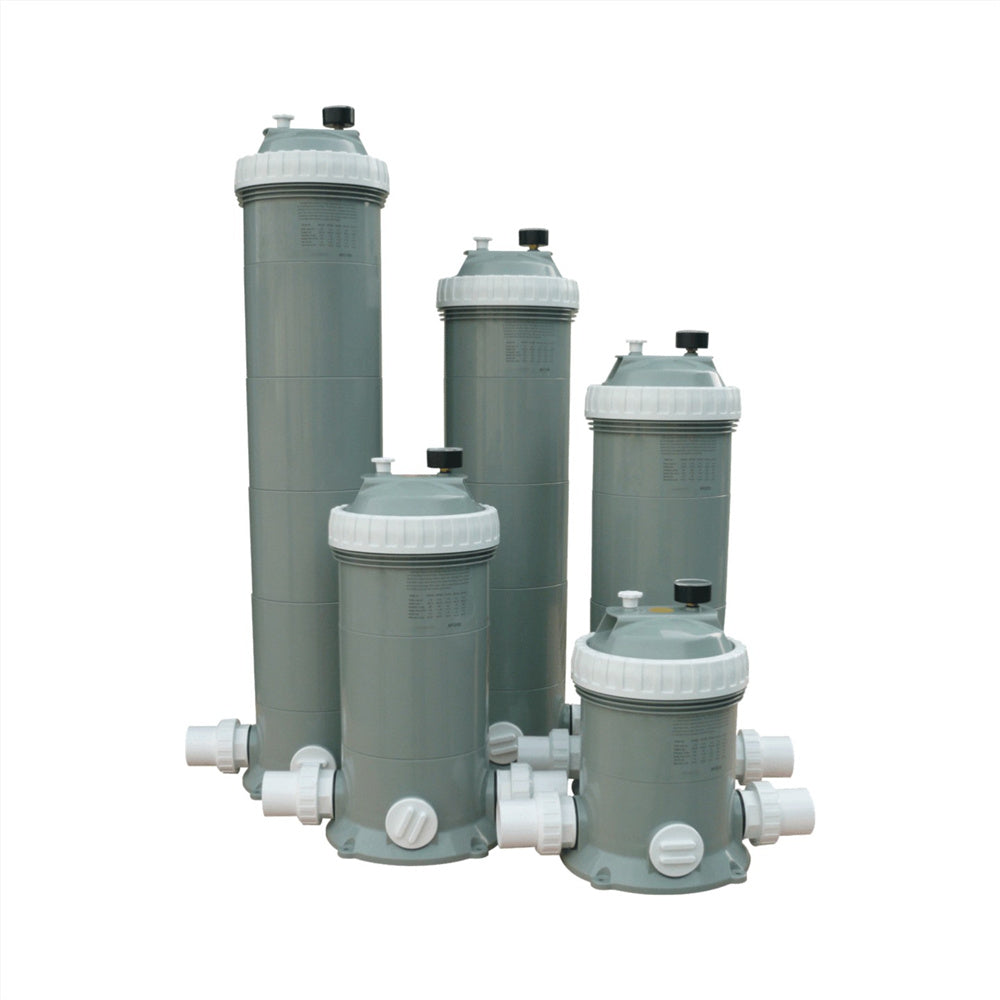

VFC Single Element Cartridge Filter For Residential Pools
- $9,999.00
- $9,999.00
- Unit price
- per
Subtotal:
$9,999.00
10 customers are viewing this product
Couldn't load pickup availability
Fast Shipping
Delivered within two weeks after placing your order.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
This high-performance cartridge filter construction is robust, UV resistant and no corrosive for long life. It has been specifically designed for the water - conscious filtration in all salt, mineral salt and fresh water pools. The cartridge element with low profile design can be simplified removal for cleaning. A choice of two inlet ports enables the inlet plumbing to be installed at either 900 or 1800 to the outlet for greater flexibility in installation.
1. Maximum working pressure: 250kPa/36psi/2.5bar
2. Maximum Water Temperature: 40°C (104F)

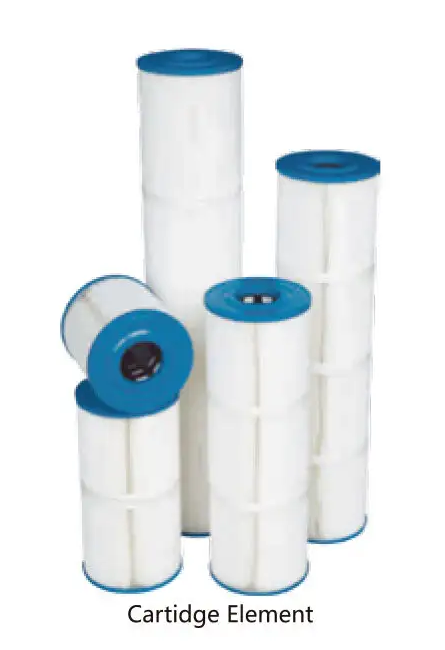

A cartridge filter is a type of pool filter that uses a pleated filter element to trap dirt, debris, and other contaminants in the water. Unlike sand or DE (diatomaceous earth) filters, cartridge filters do not require backwashing, which saves water and reduces maintenance. Cartridge filters also offer superior filtration performance and are suitable for various pool sizes and types.
Product features about KFC Cartridge Filter:
- Compact and lightweight.
- UV resistant tank.
- Heavy duty ring-lock lid allows easy cleaning and replacement of the cartridge element.
- Screw type air bleeder for easy removal of trapped air inside the filter tank.
- High quality oil filled pressure gauge for easy inspection of the operation pressure.
- Application to swimming pool & spa.
|

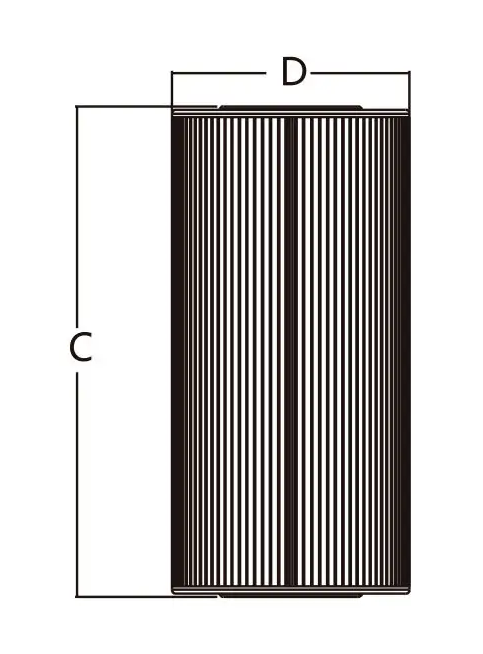

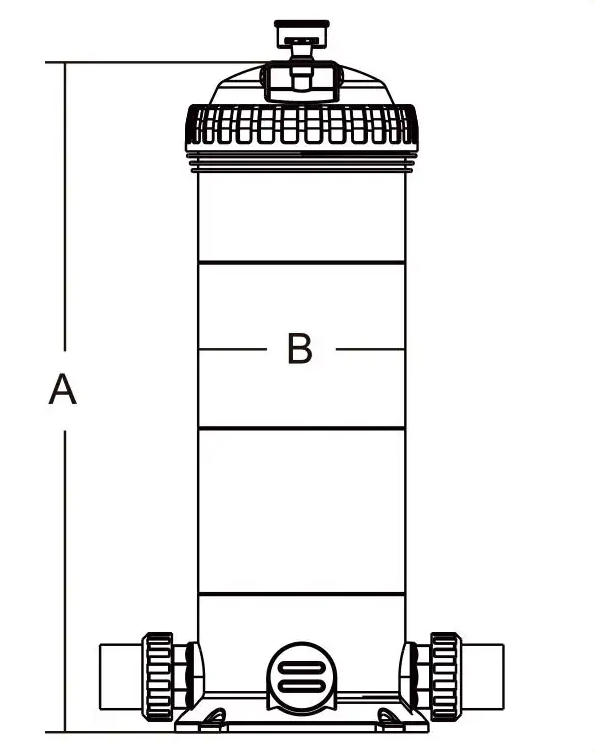

Model |
Filter Diameter（mm） |
Filter Height（mm） |
Filter Height（m³/h） |
Filter Area（m²） |
Connections （inch/mm） |
Micron（um） |
φD（mm） |
H（mm） |
A（mm） |
B（mm） |
C（mm） |
E（mm） |
|
VFC25 |
225 |
368.3 |
5.5 |
2.25 |
15"/50 |
≤20 |
800 |
2100 |
368.3 |
225 |
184.5 |
183 |
|
VFC50 |
225 |
548.3 |
11.4 |
4.63 |
1.5"/50 |
≤20 |
900 |
2100 |
548.3 |
225 |
364.5 |
183 |
|
VFC75 |
225 |
405.3 |
17 |
7 |
1.5"/50 |
≤20 |
1000 |
2100 |
728.3 |
225 |
544.5 |
183 |
|
VFC100 |
225 |
908.3 |
22.9 |
9.4 |
1.5"/50 |
≤20 |
1200 |
2300 |
908.3 |
225 |
724.5 |
183 |
|
VFC150 |
225 |
1088.3 |
33.4 |
13.72 |
2"/63 |
≤20 |
1400 |
2350 |
1088.3 |
225 |
904.5 |
183 |
|
VFC200 |
225 |
1268.3 |
40.9 |
16.82 |
2"/63 |
≤20 |
1600 |
2350 |
1268.3 |
225 |
1091 |
183 |
