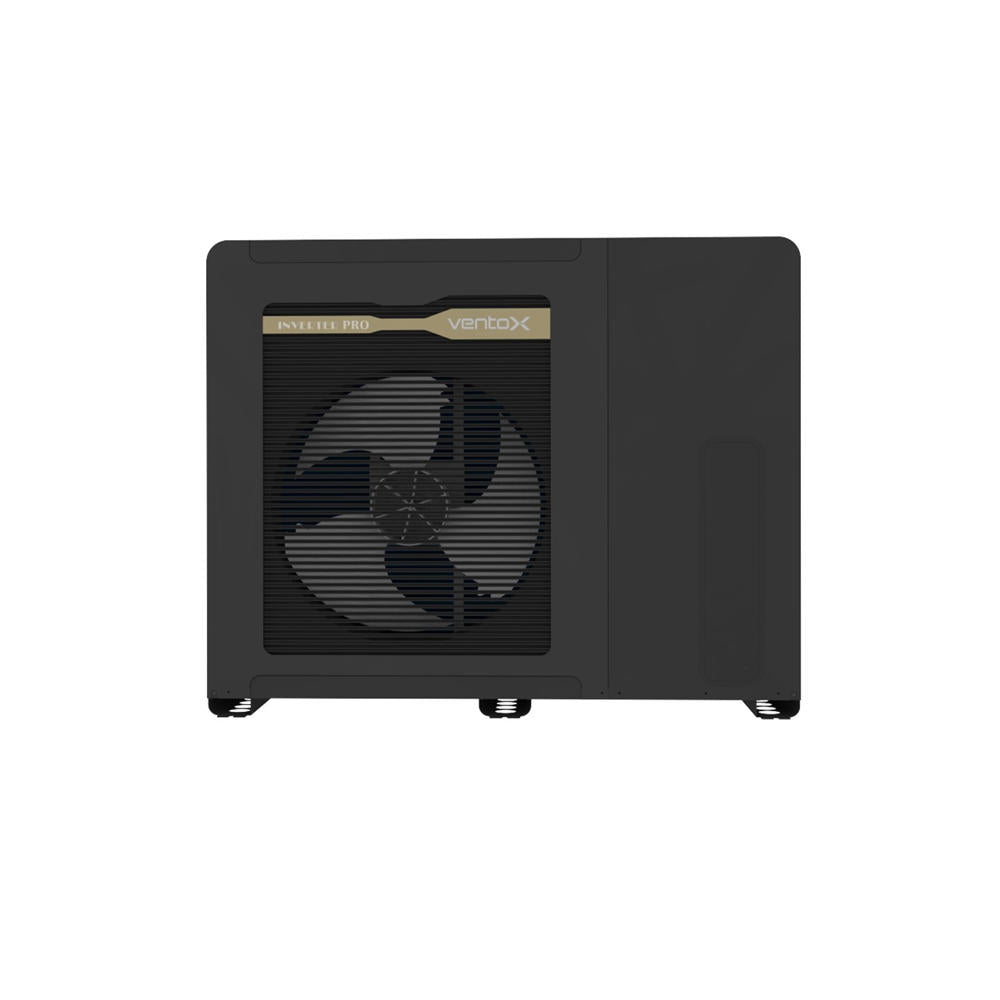

EcoFocus: R290 Front-Discharge Integrated Air-to-Water Heat Pump (Heating / Cooling / DHW)
- $4,999.00
- $4,999.00
- Unit price
- per
Subtotal:
$4,999.00
10 customers are viewing this product
Couldn't load pickup availability
Fast Shipping
Delivered within two weeks after placing your order.
Free Returns
Learn More.
Built And Shipped Within 5 - 7 Bussiness Days
Built around ultra-low-GWP R290 refrigerant and a full DC inverter system, EcoFocus delivers stable, efficient comfort even in demanding conditions: down to -25°C ambient operation, up to 75°C leaving water temperature, plus A+++ energy class and 43–48 dB(A) @ 1m quiet performance (model dependent).
Highlights (Why You’ll Love EcoFocus)
- R290, future-ready refrigerant: ultralow GWP for sustainability and long-term regulation trends.
- Full DC inverter: inverter compressor + DC fan motor + DC water pump for smarter load matching.
- Cold climate capability: reliable performance across a wider heating season.
- High leaving water temperature: supports highertemperature heating and diverse DHW requirements.
- Integrated hydraulic components: simplifies installation and commissioning.
- Multiple control pathways: wired controller + App + RS485 Modbus + DTU remote monitoring.
Applications
- Whole-home hydronic comfort: heating with underfloor / fan coils / radiators; chilled water cooling in summer (where applicable).
- Domestic Hot Water (DHW): works with a DHW tank to meet household hot water needs.
- Hybrid energy systems: can be combined with an extra heat source (e.g., boiler) and supports SG/PV readiness strategies.

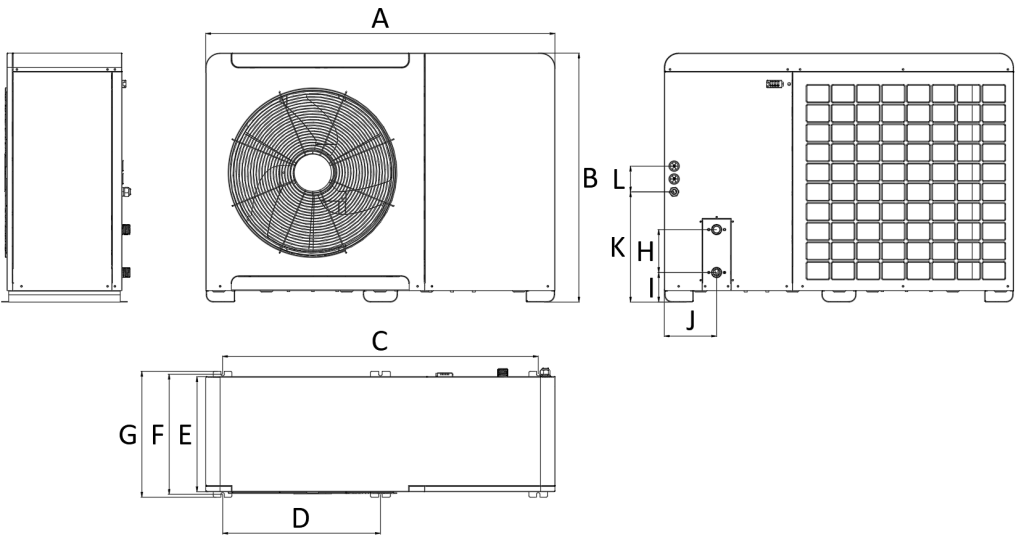

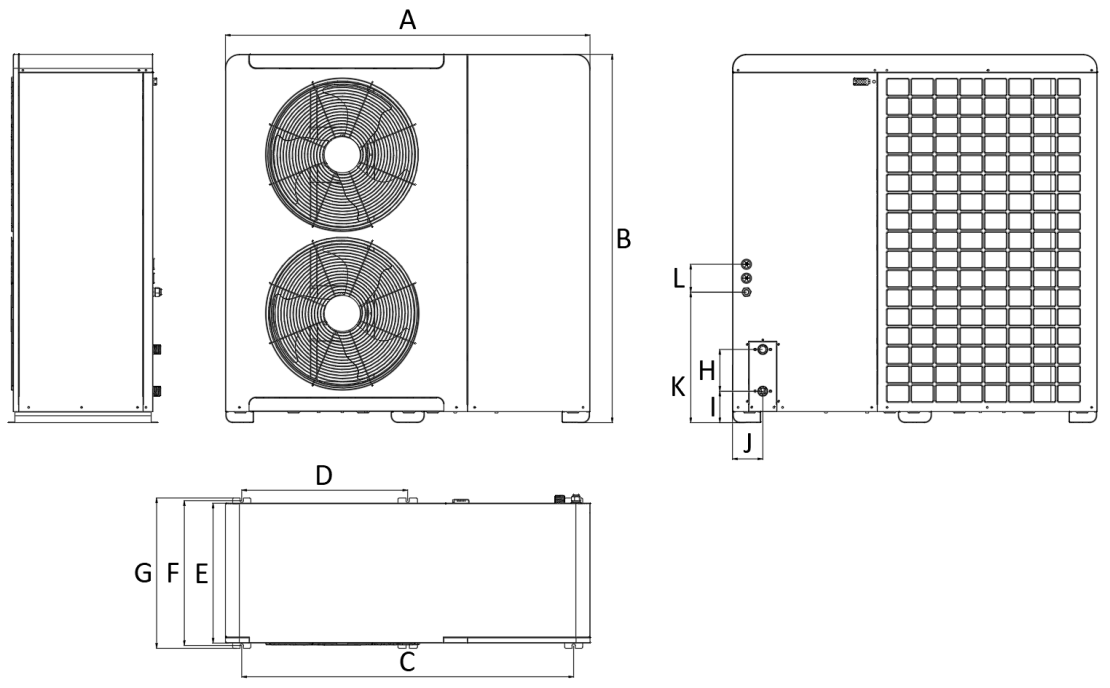

| Model | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VHC80R2V | 1220 | 870 | 1103 | 551 | 402 | 420 | 440 | 150 | 103 | 182 | 385 | 90 |
| VHC120R2V | 1310 | 920 | 1193 | 596 | 462 | 480 | 500 | 150 | 113 | 108 | 355 | 80 |
| VHC200R2TV | 1310 | 1323 | 1193 | 596 | 502 | 520 | 540 | 150 | 113 | 108 | 469 | 100 |
-
R290 Eco-Friendly Refrigerant
R290 (propane) features 0 ODP and very low GWP, helping reduce the system's climate impact and supporting future refrigerant direction.
-
Max. Leaving Water Temperature: 75°C
A high leaving water temperature expands application flexibility — for comfortable heating and a wider range of hot water demands.
-
Min. Operation Air Temperature: -25°C
Designed for cold weather heating, leveraging a high-performance compressor, R290 refrigerant, intelligent defrosting, and optimized refrigerant flow control.
-
Full Inverter Technology
Inverter technology is applied to key components — inverter compressor, DC fan motor, and DC water pump — enabling intelligent speed control for efficiency, stability, and low noise.
-
Ultra-Silent Operation
Multiple noise-reduction measures help minimize operating sound, reaching 43–48 dB(A) @ 1m.
-
Energy Efficiency Class A+++
With optimized component matching and control logic, EcoFocus can reach A+++ energy class under space heating applications.
-
Highly Integrated Hydraulic Structure
Built-in hydraulic parts such as water pump, expansion tank, pressure relief valve, safety valve and related components are integrated to reduce installation steps.
-
User-Friendly Interface
A color touchscreen wired controller supports temperature modes, operating modes, scheduling, climate curve control, status & technical parameters, anti legionella, and anti-freezing functions.
-
Two-Zone Heating Logic
Allows different target water temperatures for different terminals (e.g., radiators + underfloor), reducing temperature fluctuation and improving comfort and efficiency.
-
Extra Connection & Control
Beyond standard configuration, EcoFocus can connect and simultaneously control up to 5 electric heaters, 3 water pumps, and 3 three-way valves — enabling broader system integration.
-
SG-Ready & PV-Ready
Supports integration of “SG READY” and “PV READY” strategies for a smoother blend of solar and grid power, reducing energy consumption during operation.
-
Intelligent Remote Control
Remote monitoring/control options include wired controller, smartphone App, upper computer (RS485 Modbus), and service/DTU platform, providing convenience for users and engineers.
